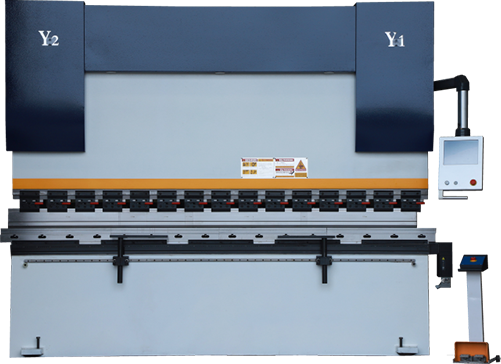

ZFY CNC Electro-hydraulic Press Brake With 3-4 Axis Back Gauge
图2_副本
ZFY CNC Electro-hydraulic Press Brake 3-4 Axis
ZFY 3-4 Axis series was designed and built to meet the small and medium-sized machining parts with extreme attention to speed, ergonomics and ease of use. This machine is recommended to be equipped with DELEM's DA53T/58T, Cybelec CybTouch 8PS/12PS and ESA S630/S640W controllers for optimisation.
ZFY 3-4 Axis Press Brake

Standard Configurations

Mechanical Engineering Design
Stress Analysis & Finite Element Analysis
ZFY has vast experience with R&D and designing components to very tight tolerances with SOLIDWORKS 3D CAD modeling techniques, and ZFY engineers are competent in designing with first principle calculations for the CNC press brake and laser cutting machine.
ZFY Mechanical Engineering Design
CNC Control System
Cybelec CybTouch 12PS 2D Graphical Controller
 Back gauge 4 axes control (Y1-Y2-X-R)
 TouchProfile 2D graphic part creation with manual sequencing
 Bend allowance calculation
 Pressure - crowning calculation
Modulable tools for each part or bend
 Punch depth calculation
 Angel and back gauge correction
CNC Control System
CNC Control System
Partnership With The World's Top Controller Brands
ZFY Designed in a responsive web environment, the possibility to use Delem Profile T3D software to simulate, it is accessible from smartphones and tablets also. the bending process and program the press brake with file transmission via USB port, LAN, or Wi-Fi.
Make corrections to the bending process easily on the tablet PC control!
CNC Control System
Back Gauge System
Press Brake 2-Axis CNC Back Gauge With X, R-Axis
 HIWIN Ball screws and linear guide on X, R-Axis
 Axis X speed 500 mm/s
 Manual Z1, Z2-Axis on HIWIN linear guide
 Mechanical accuracy±0.01mm
Fingers with double stop and micrometric adjustment
Back Gauge System
Oil Cylinder
Press Brake Cylinder Connection And Ram Sturcture
The top plate connections are mounted with double springs as well as spherical connection to the cylinders with double safety. The parallelism with the top plate can be adjusted more precisely and the proportional valves can work synchronously with each other.
Oil Cylinder
Grating Ruler From Fagor
C-type Throat Deformation Compensation Device
 Accurately measure the small deformation caused by the bending force of the machine tool and feedback compensation to ensure the bending accuracy of plates of any thickness and meterials.
Grating Ruler from Fagor
Clamping System
Upper Tool Fast Clamping
ZFY CNC press brake uses all Raw materials provided by qualified suppliers and the chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed. are standardized with an 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.
 Safe and fast tool change
 Can be used without modifying Europe-type punches
 Front clamp - vertical tool change
Rear clamp - horizontal tool change
Clamping System
Crowning System
Press Brake CNC Crowning System With Crowning Table
 Very precise bending angles
 Europe type dies with 60 mm and 90 mm
 The base can be clamped as well as single dies with 13 mm tang
 Electric crowning with a controller
 Precise positioning and alignment of the crowning table
Easy and fast usage
Crowning System
Hydraulic System
ZFY New Hybrid Servo ECO Function
ZFY promotes a friendly environmental policy, and as such all our equipment features the Hybrid ECO Function. Our hybrid servo-drive positioning system provides accuracy at any position.
 Energy saver
 Accurate on each cycle
 Economy proof
 Hi-speed&Repeatability
ZFY Servo Motor
Safety Arrangement
Press Brake Laser Protection Security Never Compromises
 Laser protection, Multi beam Receiver
 Pretective areas, Front, center and rear.
 The safety level is CAT.4 and SIL3
 Detection Case protection degree: IP 65
 Laser classification: class 1 M
 Response time: 5 ms
 Change Speed Point : 5mm + Stopping Space
 The maximum protective distance is up to 15M
LED indicators show various states
Laser protection devices
Valve Bank From Rexroth
Proportional Valve
 The frequency response (response frequency) is higher and can be as high as 200Hz.
 It can continuously and proportionally control the pressure and flow of the hydraulic system, control the position, speed, and force, and reduce the impact of pressure changes.
 Closed-loop control, signal feedback.
Original German imported products, longer service life.
Press Brake Hydraulic System
Toolings
Press Brake Punch and Die
Sheet metal press brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.
Press Brake Toolings
