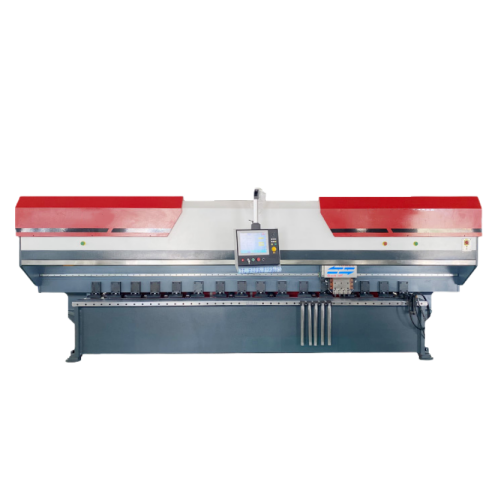

ZFY Vertical V Grooving Machine products provide a reliable, effective and economical solution. Knowledge, ability and experience has been the basis for the development of our mechanical and electronic drive components. Product performance and quality is never compromised while manufacturing.
Top performances allow for accurate and cost-efficiently V Groov pieces in high volumes.
ZFY has a completely designed proportional oil hydraulic circuit. It is optimized for every V Grooving Machine size, with high-quality and reliable parts.
Horizontal V Grooving Machine is available in many models and powers.
Taiwan HUST CNC controller Servo motor from Panasonic Ballscrew from HIWIN Linear guide from HIWIN Gear rack drive from YYC
Grooving cutter from KORLOY Electrical element from AIRTAC Air cylinder from AIRTAC Power cable from IGUS Touching ball bearing from NSK
Fine Machining Frame
The frame structure design is adopted for the machine base and beam, 65mm low alloy high-strength structural steel is used for the worktable, and the Q345 steel plate is used for the frame. The overall rigidity of the machine tool is good, firm and durable.
The vertical grooving machine has over a dozen separate pressing plates and over a dozen separate clamps to automatically load the plate material, which is easy to process regardless of the size of the plate, and can be grooved both horizontally and longitudinally.
The working surface of the vertical grooving machine is made of good mold steel after overall heat treatment and fine grinding by a grinder. After processing, the surface of the product can reach a mirror state.
The Plate is fed into machine by back clamp on back support device,And the feeding tolerance is ≤±0.03mm.The Plane of the pallet is strengthened to make it more wear-resistant.
ZFY slotting machine adopts precision copper gear and helical rack transmission and HIWIN linear guide rail, with variable frequency adjustment of movement speed, stable cutting process and high positioning accuracy. Adopt dual servo motors with dual drives as the main driving force to improve the stability and speed of the machine.
ZFY puts industry 4.0 and build the smart factory.
The future of manufacturing is undoubtedly digital. With the fourth industrial revolution taking over (a.k.a Industry 4.0),the Industrial production must adapt and cannot escape to the new reality of Industry 4.0, a production model in which all elements of the chain must be interconnected and communicate with one another.
Is your machine down? Are you needing to schedule a service visit? When you contact us for service, support, or parts, you will need to send an email to support@zfymachine.com so we can better assist you.
Actually, We have a lot of standard machine tools in stock in order for faster delivery, and they can be shipped within 3 days once confirmed the order. For mass production, the lead time is 15-25 days. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases, we will try to accommodate your needs. In most cases, we are able to do so.
Of course, we can provide most documentation including Certificates of Analysis /Conformance; Product quality certificates; BL; CO, and other export documents where required.
Yes, we always use high-quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature-sensitive items. Specialist packaging and non-standard packing requirements are provided by us for free.
