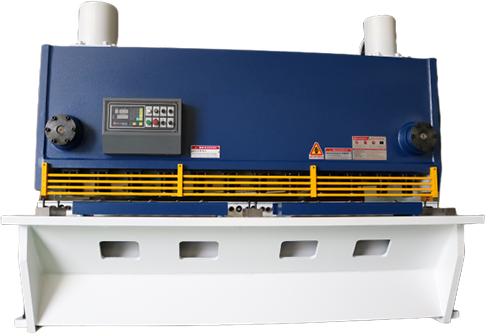

ZFY QC11K Series products provide a reliable, effective, and economical solution. Knowledge, ability, and experience have been the basis for the development of our mechanical and electronic drive components. Product performance and quality are never compromised while manufacturing QC11K Series.
ESTUN E21S Controller Electrics: Germany Schneider Electric Main Motor: Siemens Motor - Germany Frequency Converter: JRACDRIVE Foot Switch: KACON - South Korea Ball screw back gauge 1000 mm
Adjustable of blades gap Controllable cutting length Retract function
Mechanical Engineering Design
Drawing Analysis & Structural Design
The drawings analyze the linear static construction, stress, and deformation for shearing machine frames. So FEA makes sense for complicated structures, highly complex loading, transient modeling, and a combination of the above.
The upper blade penetrates the metal sheet above the lower edge. A pivoting movement cuts the swing beam. After the amount is made, the upper blade moves away from the lower blade. The upper knife moves away from the lower edge after cutting. The upper and lower blade do not rub on each other. A pivoting movement cuts the swing beam. After the amount is made, the upper edge moves away from the lower blade. The blade clearance can be easily adjusted by turning the cutting gap eccentric. The upper edge moves away from the lower blade after cutting. The upper and lower blade do not rub on each other. Swing beam cutting requires a riding shear design. The reason is the low rake angle, which is the fix for any material thickness.
High-definition hydraulic display Control common motors and frequency converters X-Axis intelligent positioning Multi-step programming, 40 programs, each program 25 steps
One of the most important factors for cutting capacity is the design of the back gauge and stability. Quality cutting is possible with the perfect product, stability and precision back gauge.
When cutting the sheet the press pad can be in close contact with the material plate to provide sufficient friction to effectively prevent the plate from being shaken during the shearing process.
Shearing machine blades will be one of the most important topics we discuss before you place the order. Any cutting materials will be completed by a suitable set of blades. We can provide appropriate blades according to different cutting requirements of customers.
ZFY puts industry 4.0 and build the smart factory.
The future of manufacturing is undoubtedly digital. With the fourth industrial revolution taking over (a.k.a Industry 4.0),the Industrial production must adapt and cannot escape to the new reality of Industry 4.0, a production model in which all elements of the chain must be interconnected and communicate with one another.
Is your machine down? Are you needing to schedule a service visit? When you contact us for service, support, or parts, you will need to send an email to support@zfymachine.com so we can better assist you.
Actually, We have a lot of standard machine tools in stock in order for faster delivery, and they can be shipped within 3 days once confirmed the order. For mass production, the lead time is 15-25 days. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases, we will try to accommodate your needs. In most cases, we are able to do so.
Of course, we can provide most documentation including Certificates of Analysis /Conformance; Product quality certificates; BL; CO, and other export documents where required.
Yes, we always use high-quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature-sensitive items. Specialist packaging and non-standard packing requirements are provided by us for free.
