Today we will share DELEM, the Dutch controller manual, which can help operators use the machine better and more easily. Before using the DELEM brand, operators should read this manual and understand the operational requirements.

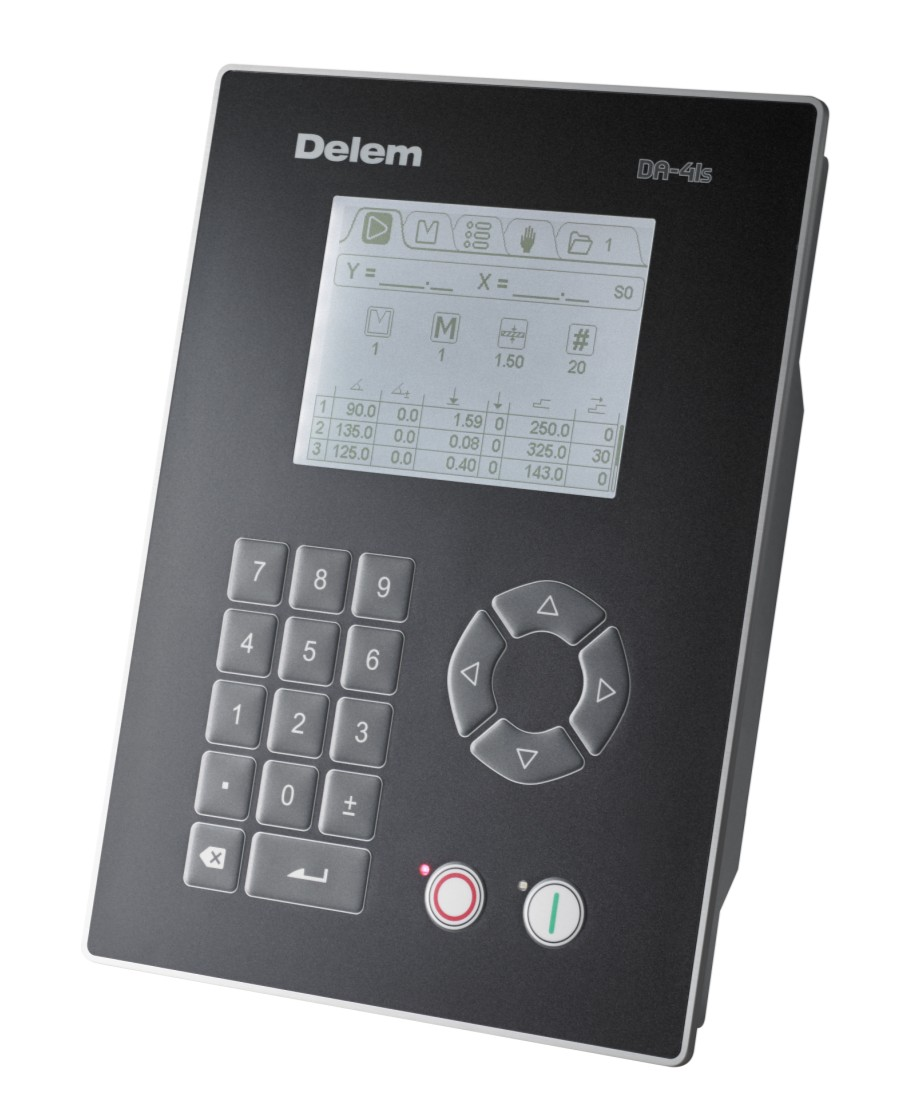

DA41-S
DELEM-DA53T-Touch-colour-CNC-system-for-press-brakes-.pdf
DELEM-DA58T-Colour-2D-graphical-CNC-system-for-press-brakes-.pdf
DELEM-DA66T-Touch-2D-Graphical-Control-for-CNC-press-brakes-.pdf
DELEM-DA69T-Touch-3D-Graphical-Control-for-CNC-press-brakes-.pdf
You might be searching too hard in the market for sheet metal machines. I know, right! That’s why I would guide you about Delem, which is an innovation leader in the same.
First, I would give you insights about Delem and further you would get to know about Delem products. Let’s get engrossed in this and widen our knowledge.
So, how did the activities in the sheet metal began? The development of a controller for press brakes to configure hydraulic cylinders’ positioning and speed began in the sheet metal industry in 1978.
It is a part of KEBA AG, headquartered in Linz, Australia.
KEBA AG is an internally flourishing company whose main goal is on sectors like industry, energy automation, services, and banking.
It is due to the capability to execute the latest technology in its products which makes it different from the crowd. Know-how is the main reason behind its extra charm and sheet metal fabrication expertise and the ability to convert this expertise into user-friendly items.
The Delem team is mainly made up of highly trained and committed development engineers, many of whom are professionals in their respective fields. Many machine builders around the world use Delem devices, including those in Europe, India, China, Taiwan, Korea, Australia, the United States, and South America.
The mission is to satisfy the needs of press brake control in a partnership relation with customers. Now, let’s get to know about the Delem Product Line:
• The DA-40s series and DA-40Touch series proud good solutions for several conventional press brakes. The control can be kept appropriate for the application for optimal user-friendliness depending on the functionality as per need.
• The DA-40Touch series raise the user-friendliness even on higher level and is one-to-one well-matched with its previous ones. The touch series expands the 40 series with a multi axes solution.
The DA-41T control gives a accessible and versatile touch control solution for conventional press brake functions with the help of multiple axes. It is possible to control the press beam, the backgauge with as a flexible I/O configuration, conducted on high-tech electronics.
The numerical programming helps in bending steps with angle programming, tool and material features on hand in a crystal clear table overview. The standard accessible USB interface helps backup and restore functionality of all products and tools.
The backgauge control holds servo, 2-speed AC as well as inverter control. Based on the application you can choose either two side or single side positioning, using optional spindle correction functionality. The variant CNC type DA-42T has dual axes back gauge control (X+R) and crowning function.
With its simple to use touch screen navigation on the bright LCD screen, operation is most accessible and efficient, thus growing efficiency. The numerical programming with obvious icons guides the operator through all programming roles.
• Panel based housing
• Bright LCD screen
• Beam stop control (Y)
• Backgauge control (X)
• Retract functionality
• Manual movement of all axes
• Backgauge control (R) (DA-42T)
• Crowning function (DA-42T)
• Pressure control (DA-42T)
• 6.4″ VGA color LCD (TFT)
• Quick, one-page programming
• Tool/material/product library
• Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
• Hotkey navigation
• USB, peripheral interfacing
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
• Panel-based controller with optional housing
• Crowning control

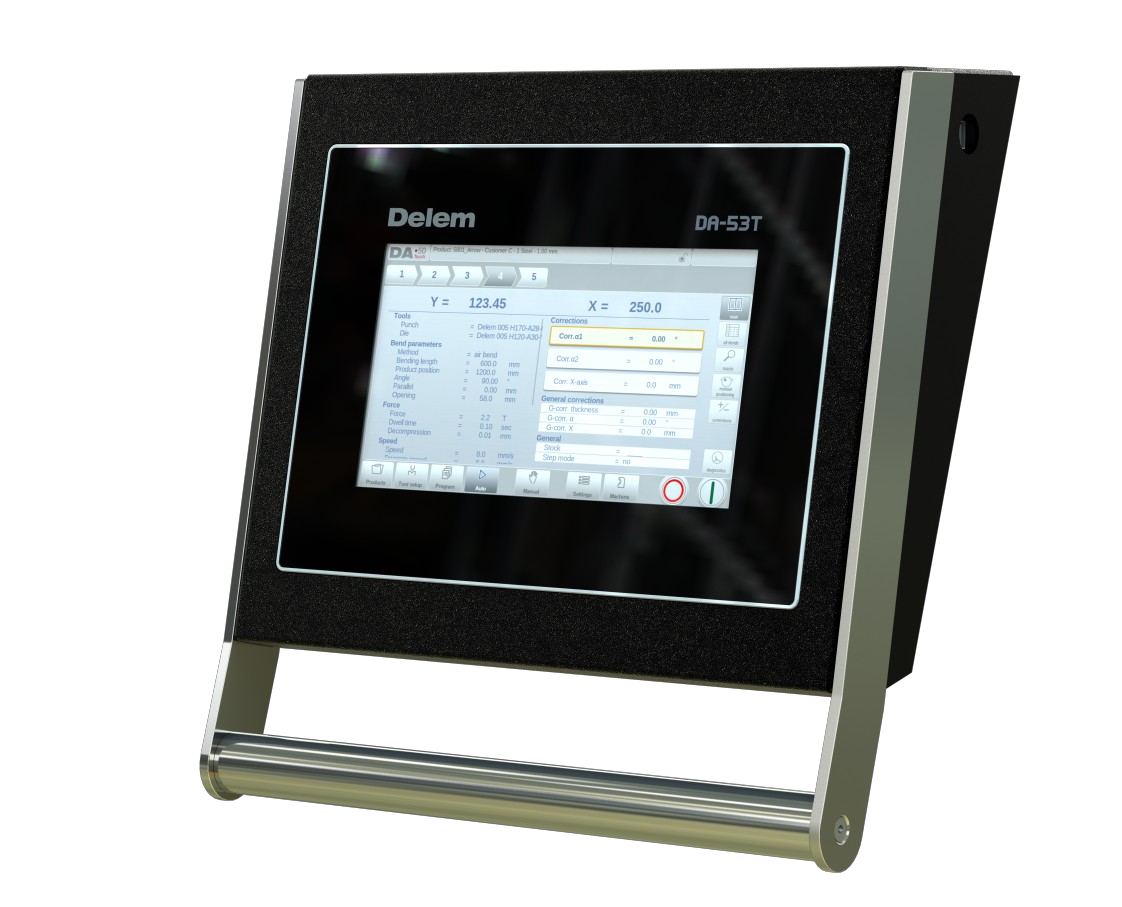

The DA-53T is a lightweight CNC clarification for both traditional and synchronized press brakes.
The panel-based power, which can control up to four axes, can be installed in cabinets or in a pendulant arm housing as an alternative.
The DA-52 has all keypress brake features and is integrated with the Delem user-friendly user interface. The proprietary ‘hotkey’ navigation offers immediate access to the programs stored in memory, allowing for fast and easy product programming.
On one tab, you’ll find all of the general bend parameters. An additional page may be chosen for higher parameters.
Onboard features include Y-axis angle programming, crowning, and pressure control. Memory sticks can be used as a fast product and tool backup medium due to USB interfacing.

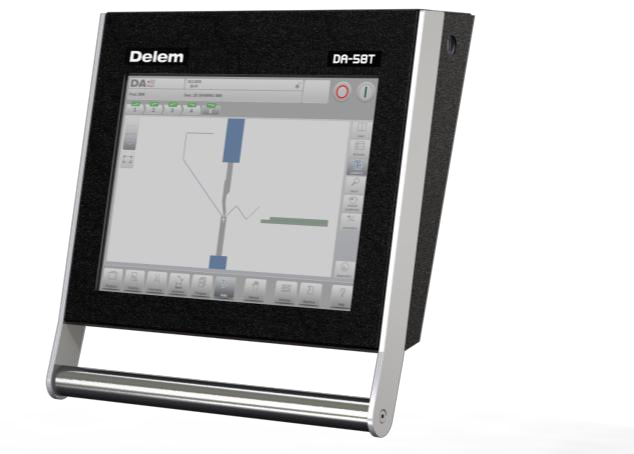

The DA-58T is a top-notch synchronized press brake control solution that includes an entire 2D graphical control solution. The Delem interactive touch screen user interface features the simplest CNC programming, including automated bent sequence estimation and collision detection.
The Delem user interface is accessible through a 15″ high-resolution color TFT with industrial-grade dual touch screen technology. It allows for direct coordination between product creation and manufacturing. Functions are placed where they are desired, resulting in improved ergonomics in the application.
The machine loop is streamlined, and set-up time is minimized due to highly effective control algorithms. As a result, press brakes are easier to use, more resourceful, and adaptable than ever before. The OEM-panel, which is placed above the screen and is used for system functions and OEM-application switches, is included in the specification and can be used if needed.
The DA-52 has all keypress brake features and is integrated with the Delem user-friendly user interface. The proprietary ‘hotkey’ navigation offers immediate access to the programs stored in memory, allowing for fast and easy product programming.
On one tab, you’ll find all of the general bend parameters. An additional page may be chosen for higher parameters.
Onboard features include Y-axis angle programming, crowning, and pressure control. Memory sticks can be used as a fast product and tool backup medium due to USB interfacing.
• 15″ high-resolution colour TFT
• 2D graphical touch screen programming
• Crowning control
• USB, peripheral interfacing
• Profile-T offline software
• Servo and frequency inverter control.
• Bend sequence calculation
• Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
The DA-60Touch series press brake controls provide an even superior grade of proficient programming with a high-tech large screen touch application.
DA-60Touch series fits the most challenging applications that improve high-end press brakes and permit OEM to amalgamate sophisticated functionality.
The current generation DA-Touch controls provide an even superior grade of efficiency in programming, operation and control of today’s press brakes. Easy use combined with high-tech technology go hand in hand, boosting efficiency.
The touch screen gives access to the proven Delem user-interface and allows direct navigation between programming and production. The functions are located straightforward where you need them, and provides optimized ergonomics throughout the application.

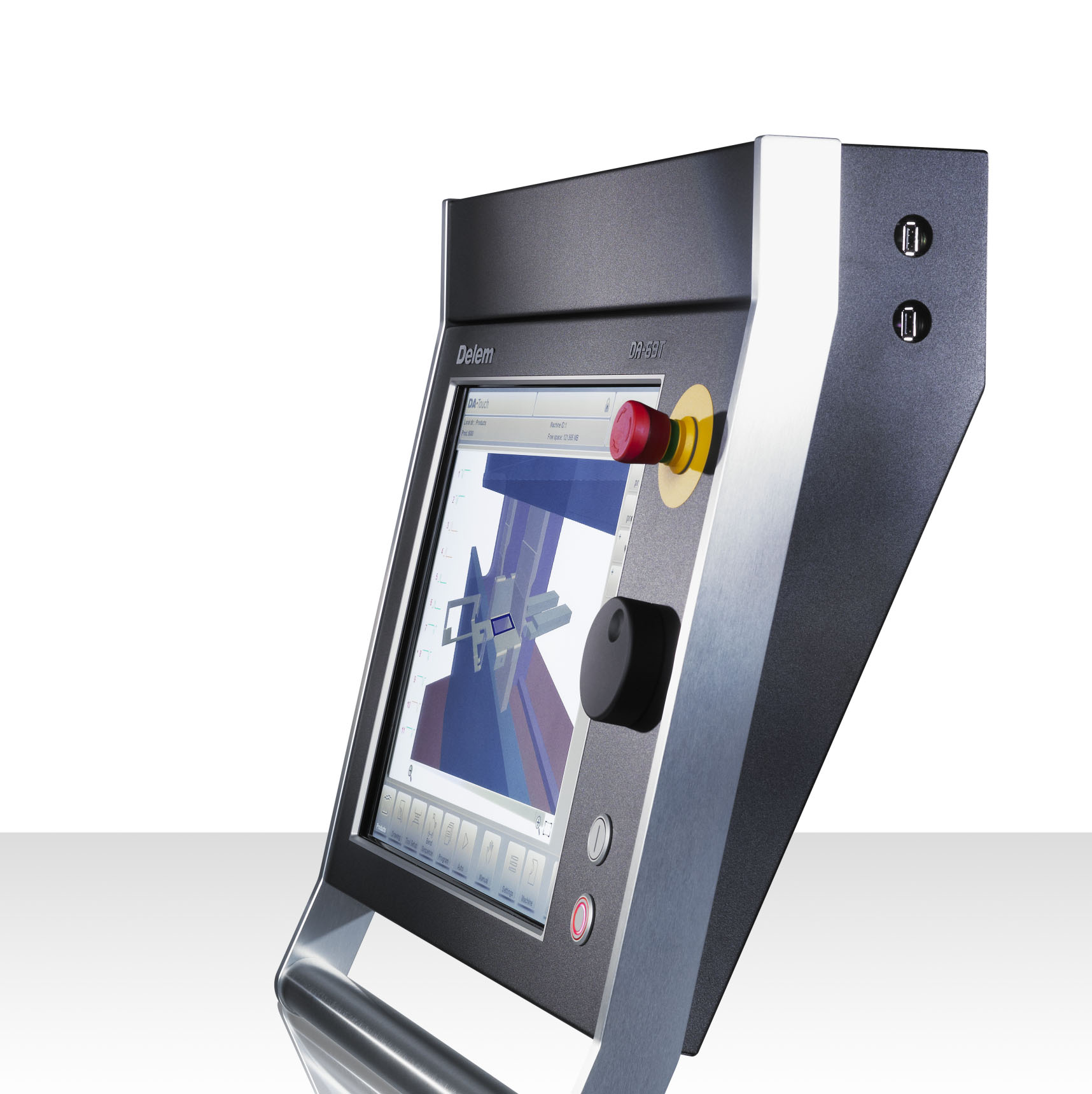

The DA-69T is equipped with 2D as well as 3D programming that contains automatic bend sequence calculation and collision detection. Full 3D machine set-up with numerous tool stations which gives accurate feedback on the product possibility and management.
Extremely effective control algorithms can optimize the machine cycle and minimize set-up time. This makes simple usage of press brakes and is more well-organized and more versatile than ever.
• 2D graphical touch screen programming mode
• 17″ high resolution colour TFT
• Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• User specific application support within the control’s multitasking environment
• Sensor bending & correction interface Profile-TL offline software.
The DA-69T is equipped with 2D as well as 3D programming that contains automatic bend sequence calculation and collision detection. Full 3D machine set-up with numerous tool stations which gives accurate feedback on the product possibility and management.
Extremely effective control algorithms can optimize the machine cycle and minimize set-up time. This makes simple usage of press brakes and is more well-organized and more versatile than ever.
• 3D and 2D graphical touch screen programming mode
• 3D visualisation in simulation and production
• 17″ high resolution colour TFT
• Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• User specific application support within the control’s multitasking environment
• Sensor bending & correction interface
• Profile-T3D offline software
