When we discuss the CNC Press brakes, we will talk about its Normal Pressure, Length, or Series. Nowadays, when conducting sheet metal processing operations, users pay more attention to the versatility and multi-dimensional use of the Press Brakes, which is reflected in the number of control axes of the Press Brake, including: 2 axis, 4 axis, 6 axis, etc. Today, this article will focus on analyzing the application of control axes in Press Brakes. For example, ZFY smart CNC Press Brake With 6 axes, so what is a ZFY 6-axis Press Brake?
Top range “Made In China ” with Europe standard and laser safety guards.
From 30 to 2000 tons & from 1,5 meter to 12 meter.
New ZFY CNC press brake for sale get a quote on the Pro 6-Axis CNC press brake from ZFY MACHINE-CHINA.
Unbeatable Price-Performance value.
State-of-the-art user-friendly DELEM DA66T 2D Multi-Touch CNC Control.
Highest Part Precision.

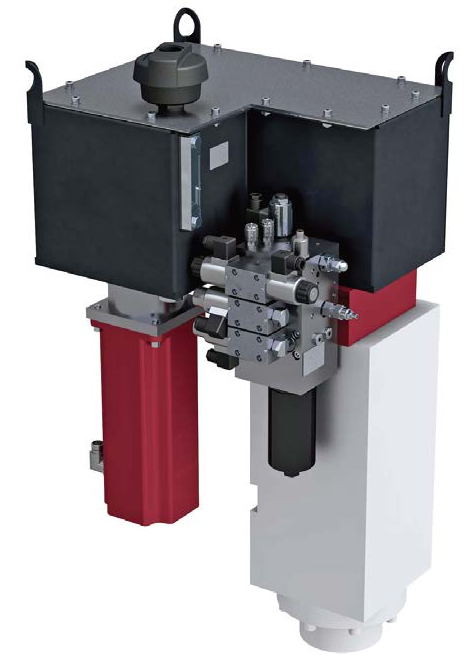

The ePrAX Hybrid Servo System- increases the energy efficiency by up to 70 % compared to conventional hydraulic systems is an innovative servo drive for 6 Axis CNC press brakes, and thanks to the brushless servo motor, we can precisely control the movement of the slider ram using a minimum amount of oil and energy.
The 3.2 meter x 160 Ton New ZFY Press Brake With 6-Axis is ZFY's High- level press brake with market-oriented execution. These high-quality ZFY-built press brakes feature 2d multi-touch graphical control. ZFY press brakes offer the best price to perform value for your fabrication needs.
The CNC press brake Body and upper beam made of steel constructions have been designed according to minimum stretch and optimum resistance criteria, as the manufacture of precision CNC machining center is a single operation.

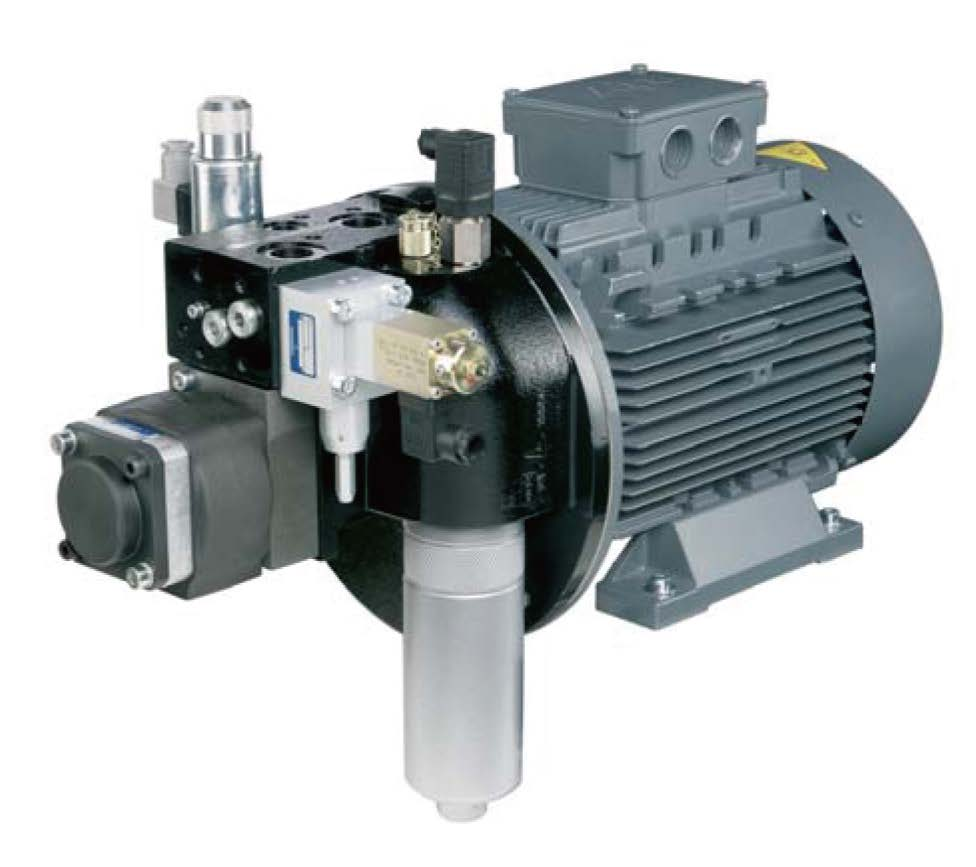

The power module PLM combines pump,pressure
filter and pressure adjustment in a bell housing
developed as a control block. The low-noise
high-pressure internal gear pump, from 5 to 50ccm/r.

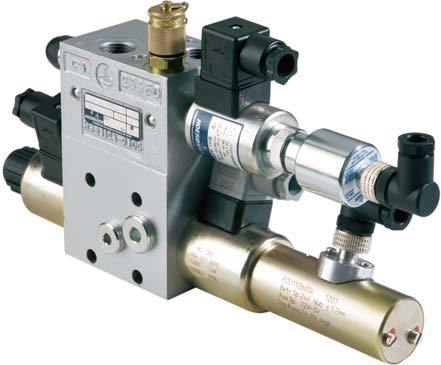

The new control valves type PIH/PRH in combina-
tion with our system amplifier PVR permit
load-independent positioning of CNC press axes
DELEM DA-66T CNC control unit with 2D graphics
6+1 axis CNC
Y1, Y2 precision ram positioning
Standard BGA-4 for X, R ,Z1 ,Z2-axis ( X=800mm,R=200mm)
DELEM CAD/CAM Profile-T3D Expert 3D Offline Software

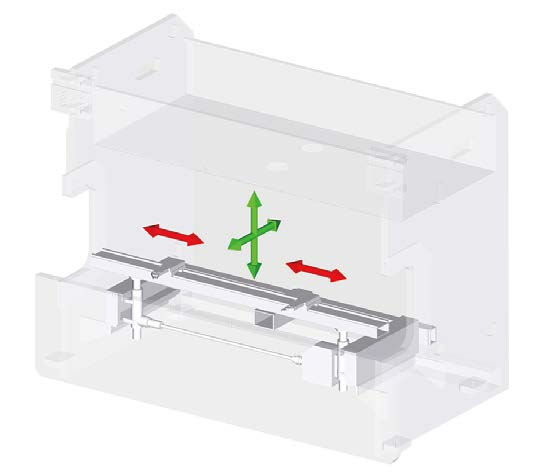

ACCURL PRO CNC motorized wave crowning
Large trip of value
Large open height
Large stroke
Large throat depth
HOERBIGER hydraulic valve block, pump and valves
High Siemens efficiency motor– class IE3
Hybrid ECO Function for energy-saving drive
Rear cover: Safety barriers (Category IV)
Sheet metal frontal supports
Front and rear lighting
Industry 4.0 of Productivity Monitor (software version V3.5.3)
CE Norms: OEM Embedded Lazersafe Systems PCSS A0 + LZS-2 Block Laser (Category IV)

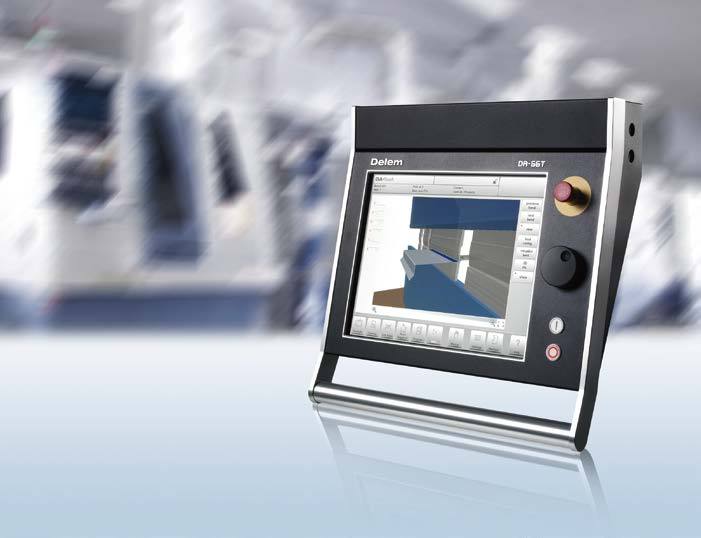

ZFY has chosen the very powerful new generation DELEM DA66T/DA69T also can optional ESA S640 2D graphical /ESA S650W /ESA S660W 3D graphical CNC Control and CYBELEC CybTouch 12 PS / CybTouch 15 PS 2D and CYBELEC VisiTouch 19 MX 3D offers a higher level of efficiency in programming and control of CNC press brakes. The DELEM-winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.
The application of Multi-Touch technology reduces the number of keyboards- and button actions to an absolute minimum. The innovative Smart Draft, Design/Bending Multitasking, Step Previewer and Combined Icons features allow the operator a straightforward, intuitive control of the entire production cycle.
DA66T software maximizes machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation of the bending process. Production preparation, make ability and tooling verification, operator training, adding notes for production and many other functions can be done offline.
· 17” high resolution color TFT(touch screen control)
· Design and Bending Sequence Calculation in Multitasking Mode
· Standard 2D/3D visualization
· Automatic or manual bending
· Automatic double bends solution
· Execution of generated 2D-programs
· Editable graphical tool database
· Editable material database
· Automatic/ Programmable retraction
· False bend solution
· Exporting of computed flat patterns as DXF ,3D STEP, IGES files(Profile-T-3D)
· Real time bend sequence calculation
· Multi-language support
· 3DSimulation with automatic best bend sequence identification with collision detection.

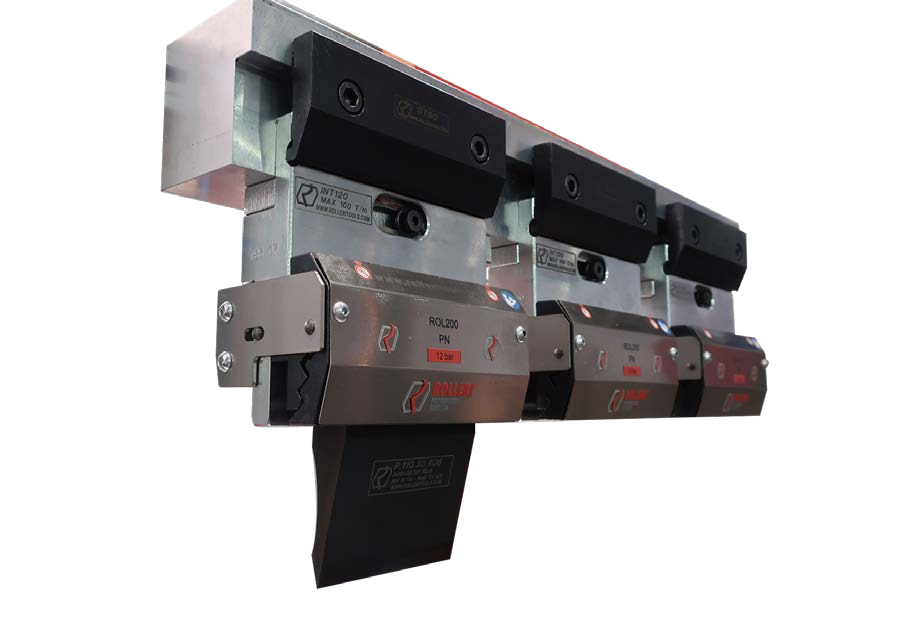

The New ROLLERO clamping ROL200 system enables manual, pneumatic or hydraulic vertical clamping of your top tools. The special features are the enormously simple handling and the surprisingly low price, which guarantees huge effi ciency.

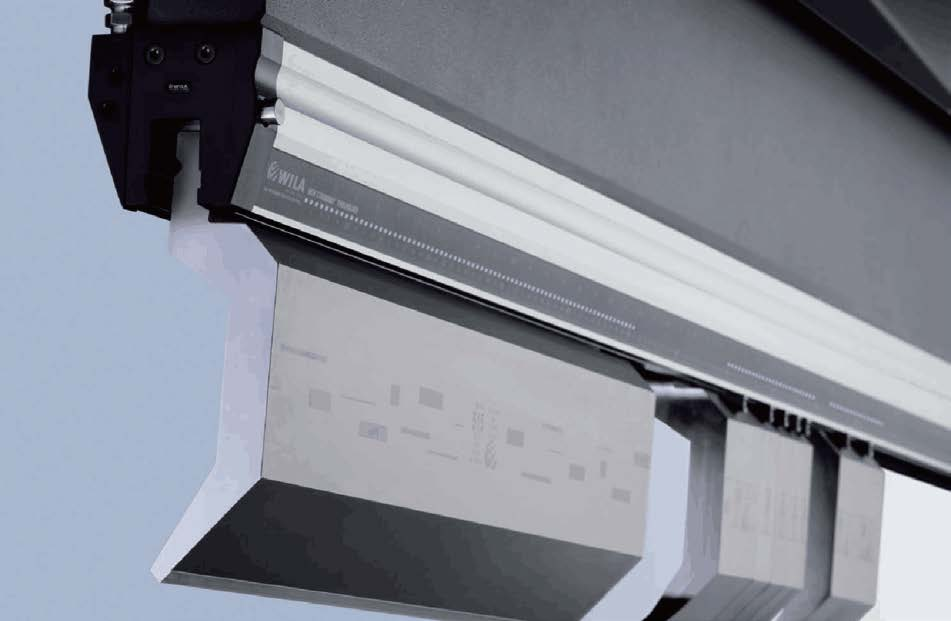

The Wila’s ‘New Standard’ Tooling System has become market leader for precision, quality and flexibility for the Accurl press brake. the WILA’s state-of-the-art clamp systems offer optional for the ultimate efficiently changing tools with Smart Tool Locator® (STL)* have made the changeover process easier and safer. and Premium is available as an option.

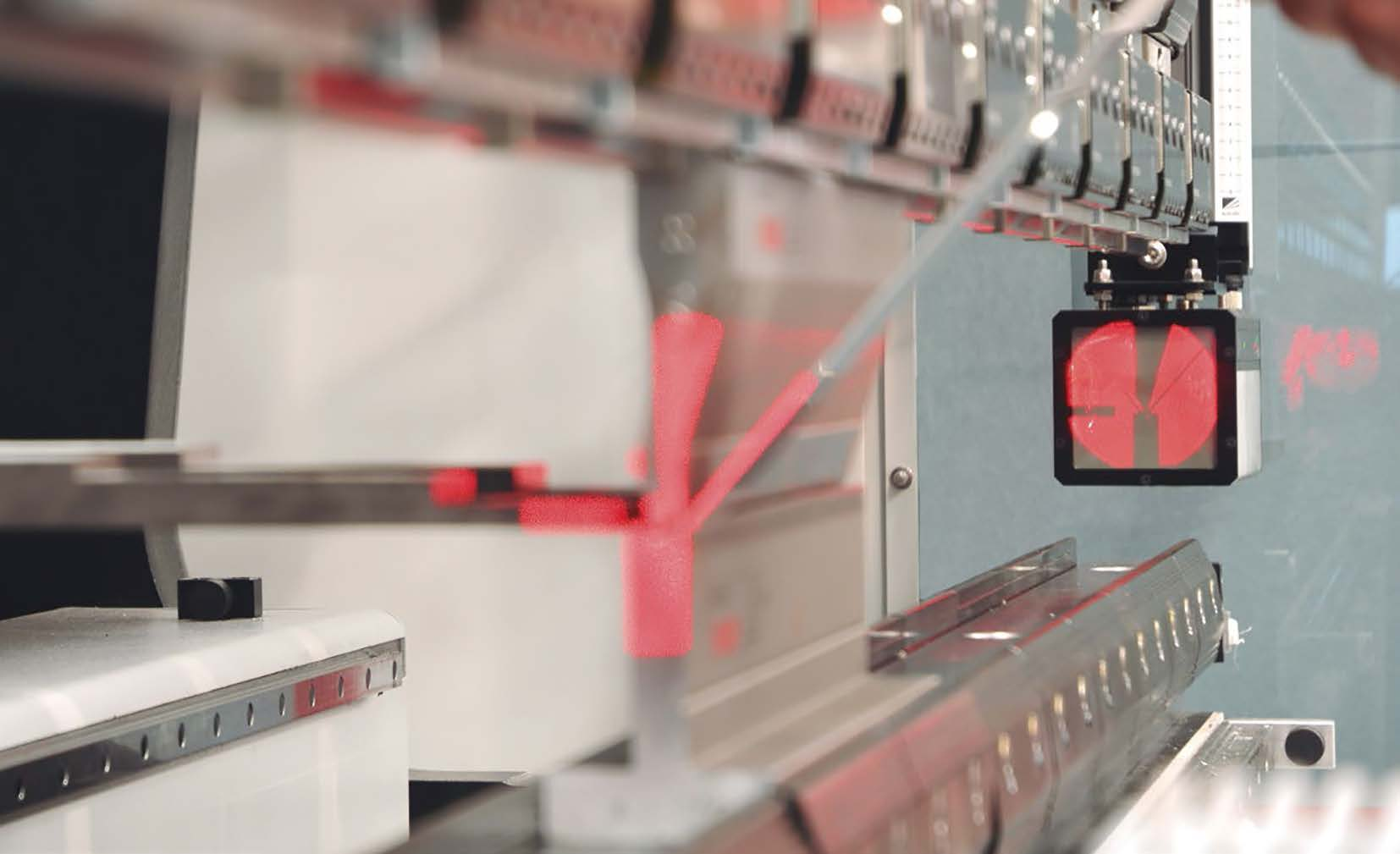

Laser Check, manufactured by Data M Engineering, is a bend angle measurement and correction system by means of a laser beam. The device is made of a laser and a camera on both sides of the bending line. Detection is carried out in this way.
Advantage:
Advantage:
A laser beam is projected on the sheet metal surface
The camera detects the laser beam
The angle between the beam and the camera axis determines the bend angle.
Force reduction + calculation of the springback
Standard tooling is applicable – no extra cost for internal measuring units
Automatic angle correction
Automatic angle measurement and automatic correction of the bending angle Active Angle control is a highly accurate angle control process that calculates spring back for each individual bend, then controls the bend depth with Live Angle Bending to achieve the correct angle.
IRIS Plus comprises a laser transmitter and receiver set mounted to the upper beam of the press brake. It includes a high speed digital camera and image data processing system contained within the receiver unit.
BendVision for angle measurement:
BendVision technology provides a range of real-time angle measurement data that includes the inside and outside angles of the material, average angle, material warp angle, material spring back angle for various material types, thickness and grain direction, plus end of relaxation angle once the bend has been completed.
Automatic Angle Measurement Control:
Active Angle control is a highly accurate angle control process that calculates spring back for each individual bend, then controls the bend depth with Live Angle Bending to achieve the correct angle.
IRIS Plus real time angle correction An important device for the most demanding applications.
