The advantages of the automatic bending unit are by no means limited to high-efficiency production. The use of robots can greatly reduce the hidden dangers of operators, and the standard process flow also ensures the consistency of product quality.

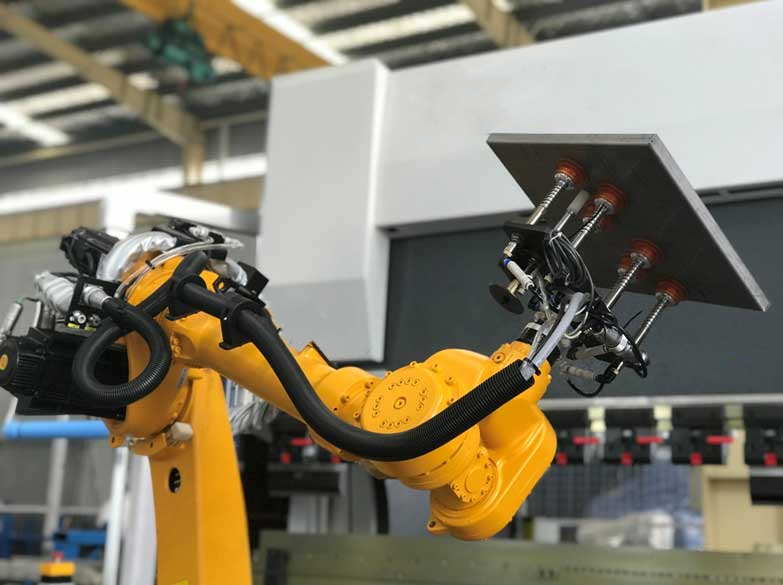

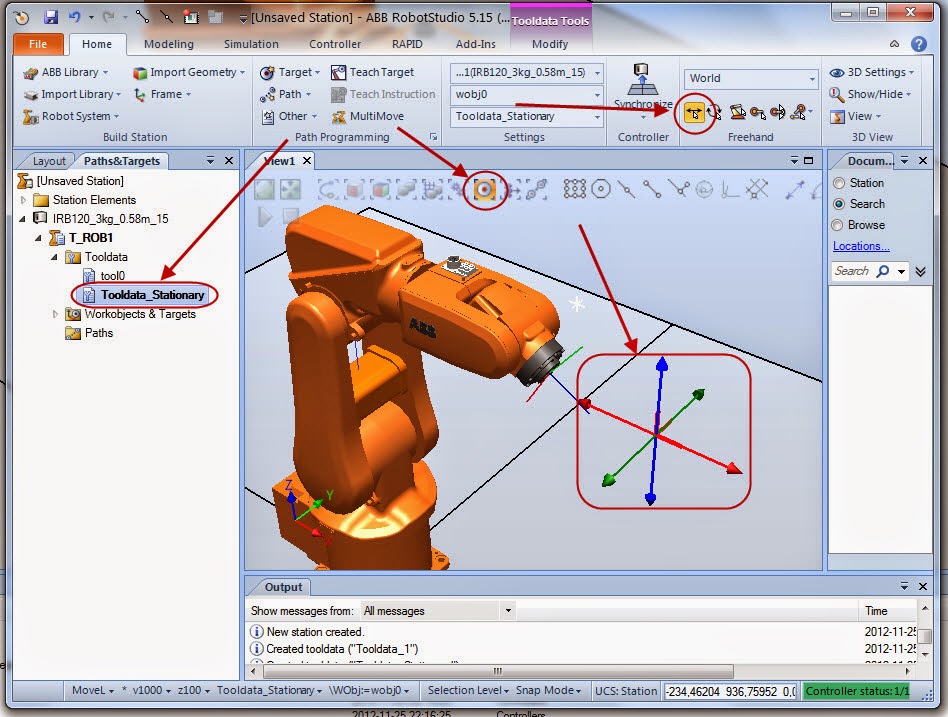

ZFY's automated bending solutions include gantry robots and joint robots, equipped with various grippers such as vacuum suction cups, electromagnets or mechanical grippers according to process requirements. One of its important features is its flexibility. The robot can automatically change grippers and be equipped with multiple
bending machines, flexibly manage the processing sequence, and at the same time reduce the production assistance time, and can significantly improve production efficiency even for the processing of small batches of products. The robot can be installed on the ground rail or sky rail in front of the bending machine, and will not be affected when manual bending is required.
| name | unit | HR30 | HR50 | HR80 | HR90 |
| Rated loading capacity | kg | 30 | 50 | 80 | 130 |
| X-axis travel | mm | 5000 | 6000 | 6000 | 6000 |
| Y-axis travel | mm | woo | 1350 | 1350 | 1350 |
| A-axis travel | degree | +-92.5 | +-92.5 | +-92.5 | +-92.5 |
| C-axis travel | degree | +-182.5 | +-182.5 | +-182.5 | +-182.5 |
| Air suppiy pressure | mpa | 0.55 | 0.55 | 0.55 | 0.55 |
| Total motor power | kw | 9 | 11.5 | 14 | 16 |
| Machine overall dimension(length) | mm | 7110 | 8370 | 8370 | 8370 |
| Machine overall dimension(width) | mm | 2500 | 2980 | 3480 | 3480 |
| Machine overall dimension(height) | mm | 3680 | 4180 | 4180 | 4180 |
| Weight of machine | kg | 2500 | 3000 | 3500 | 4000 |
| Product name | Joint bending robot |
| Maximum workpiece size | about 2800mm*1400mm |
| Maximum workpiece weight | about 100kg |
| Maximum load capacity | 165kg |
| Minimum sheet thickness | about 0.6mm |
| The maximum stacking height of plates | about 1200mm |
| Maximum stacking height of processed parts | about 1200mm |
| The seventh axis length | 4-12m (customizable) |
| Quick change tooling quantity | 4-8 (customizable) |
The ZFY automatic bending system can automatically simplify the production process without reprogramming, reduce the dependence on manual intervention in production, and is not afraid of batch production orders.
The equipment can automatically fold up and down according to the bending process to realize the combined bending of arc, dead edge and various angles. It can achieve various bending requirements without changing the bending tool, saving a lot of labor and mold costs for enterprises.
The maximum size of the processed plate is 2500mmx1500mm, and X, Y, C, V1, V2, Z1, Z2, W1, W2, P are controlled in 10 axes.

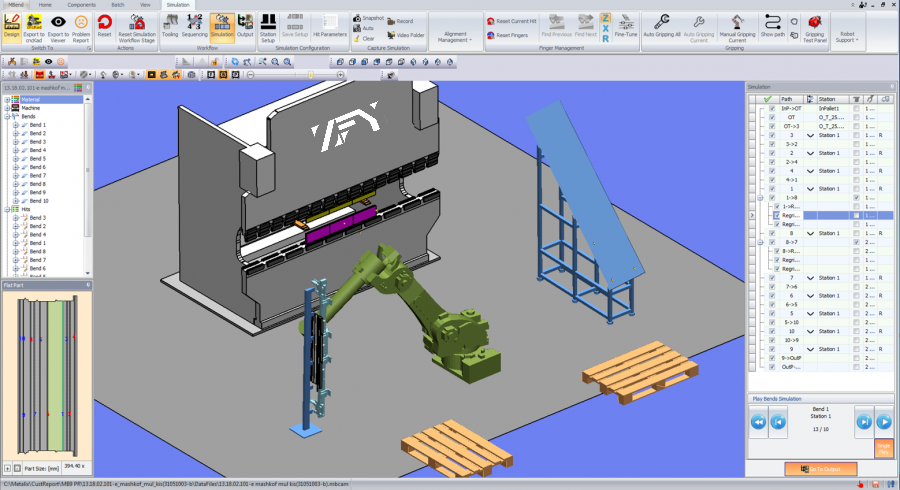

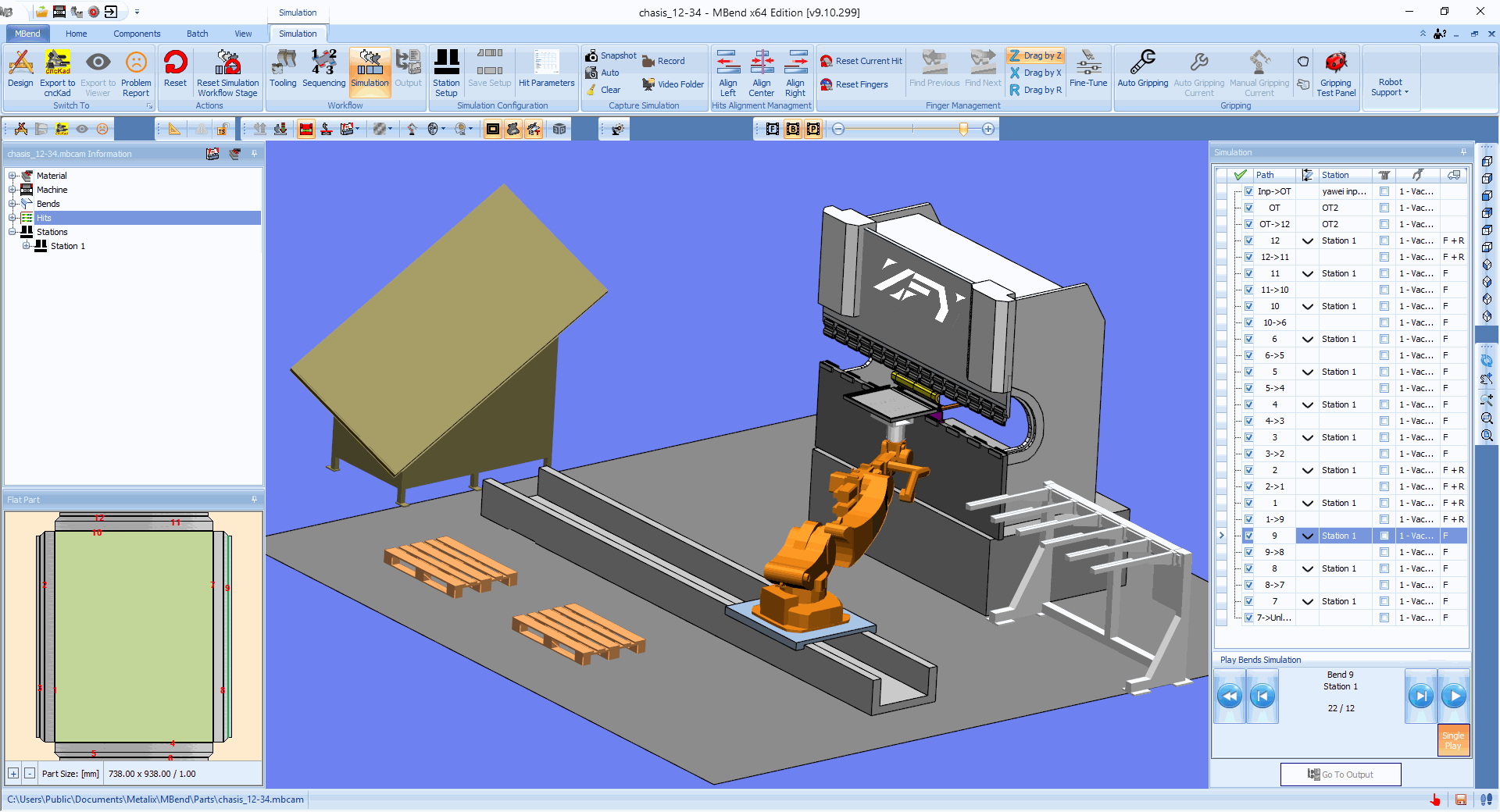

ZFY CNC press brake bending unit with robot system focuses on solving various complex sheet metal and bending problems in metal forming. Through multi axis concurrent linkage, it can automatically complete the sheet metal operation, solve the dependence on mold and labor from the technical point of view, effectively improve the production efficiency and reduce the production cost.
